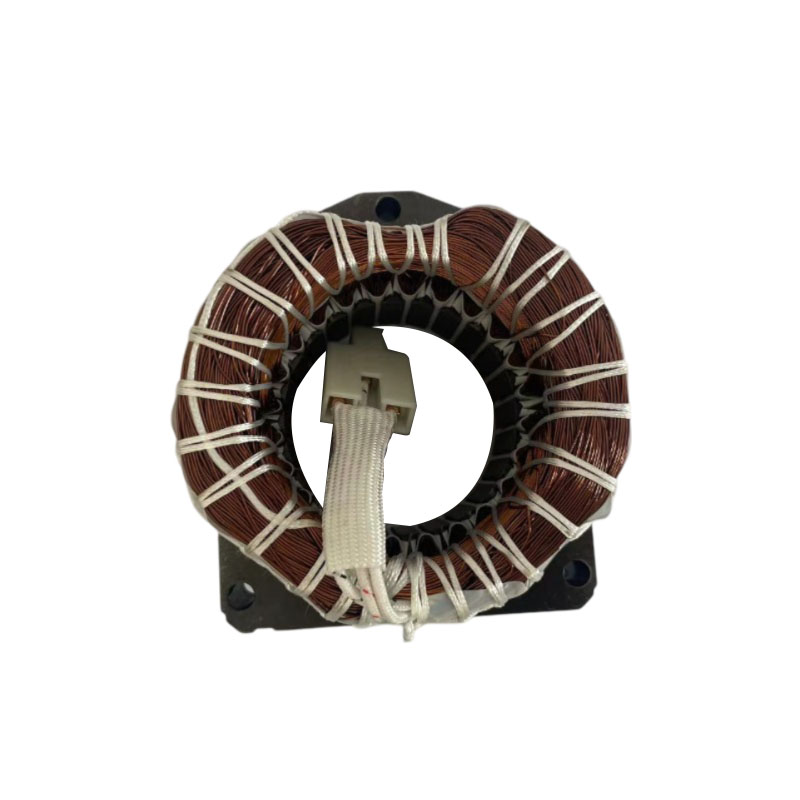

HL Motor

Core height

26±0.5mm

Bolt hole distance

69.6*80mm

Winding parameters

Main winding

Wire diameter Ø0.45mm (aluminum wire)

Main winding turns

60

130

196

198

158

Main winding weight

Resistance

62.5±7%Ω

Secondary winding

Wire diameter Ø0.38mm (aluminum wire)

Secondary winding turns

40

58

80

Secondary winding weight

Resistance

21.2±7%Ω

Plug board direction and lead length

Right triangle, lead length 50±5mm

Casing marking

HL35YA-T

Core inner hole

Ø49.02—Ø49.07mm

Inner diameter inspection

Go/No-Go Gauge Inspection

Wire package requirements

Lead end height

≤24mm

Special inspection tool

Non-lead end height

≤21mm

Inner envelope size

Ø53min

Outer envelope size

Ø85max

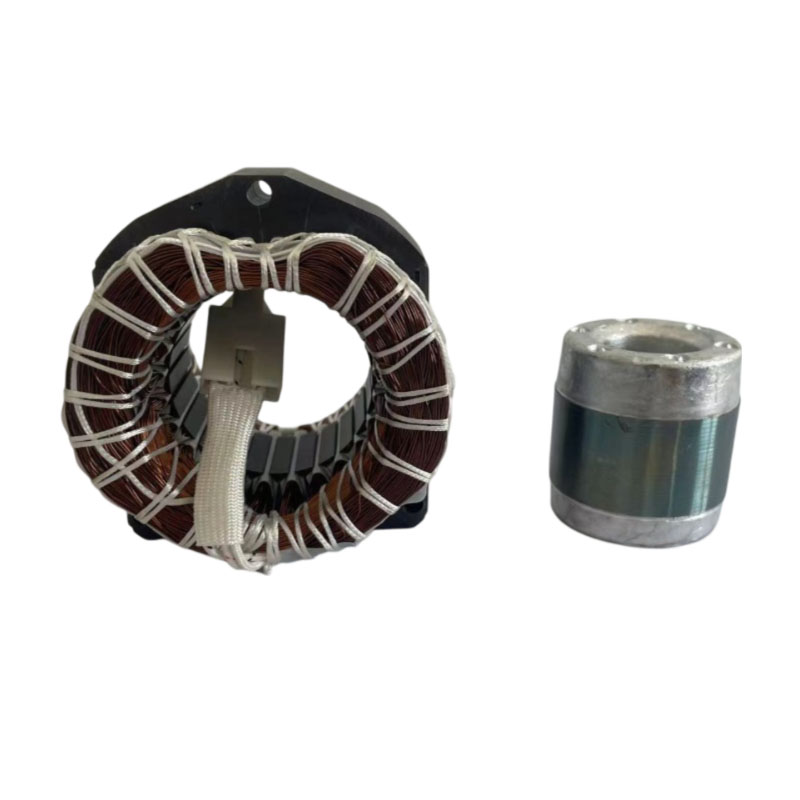

Rotor outer diameter

Ø48.4±0.03mm

Rotor stack thickness

26±0.5mm

Rotor inner diameter

Ø11.961—Ø11.979mm

Channel direction

Left-handed

Counterbore diameter

Φ20±0.4mm

Countersunk hole depth

15±0.5mm

Aluminum ring height

15±0.5mm (counter hole end)

10.5±0.5mm (non-counter hole end)

Rotor marking

HL26 12 8

General requirements: no rust on the core, no damage to the slot insulation, no cracks on the enameled wire, and firm binding (appearance).

Rotation direction: from the lead end, counterclockwise rotation to the right.
